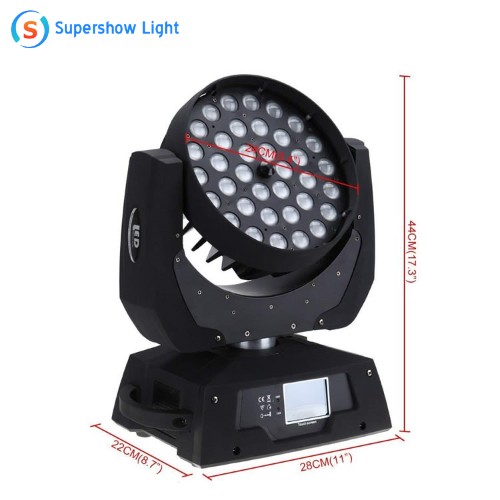

36x10W Zoom Wash Led Moving Head

36x10W Zoom Wash Led Moving Head
36*10W RGBW  Leds
Perfect wash with fully premixed color
A wide zoom angle 10-60°by auto zoom systerm
Fast and smooth movement
LED shutter and led dimming
Extremely quietdifferent working state
Temperature detection system
High efficiency, low power consumption, long lifetime
Compact, low weight design
Low noise and efficient FAN cooling system
Scan position memory, auto reposition after unexpected movement
Pre-programmed random strobe and pulse effects
Built-in programs with macro effects
DMX512, master-slave and sound activated controllable or auto operation
Auto-switching power supply that can accommodate a widerange of input voltages

Specification :
LIGHT SOURCE
LED : 36x10W RGBW 4in1 LEDs
LED brand :TianXin
Life Span: 80000Hrs

OPTICAL SYSTEM
Lens :zoom lens systerm
Zoom Angle:10-60°
Zoom systerm :motorized zoom motor

POWER
Power Supply: AC 90-260V, 50/60Hz
Power Consumption: 450W

PHOTOMETRIC DATA
Zoom 10° Lumen: 26470 lux@2m
Zoom 60°Lumen:5394 lux@2m

CONTROL
Control Mode: DMX512, master-slave, sound activated or auto operation
DMX Channels:15 CHS Two DMX models
Multi preset internal programs

PHYSICAL
Display: colorful LCD
Protect Rate: IP20
Housing : Flame-retardant thermoplastic
Color :Black(White is available)
Pan :540 degree
Pan resolution :16bit
Tilt :240 degree
Tilt :resolution :16bit
Dimmer: 0-100%
Strobe: 0~20HZ

DATA
Power :PowerCon in and out connection
DMX : 3-pin and 5-pin XLR connection

WEIGHT & DIMENSION
Weight: 9 kg
Dimension: 280*210*450mm
Flightcase of 2pcs 36x10W Moving Head :
Gross Weight: 45kg
Flightcase of 4pcs 36x10W Moving Head :
Gross Weight: 68kg
